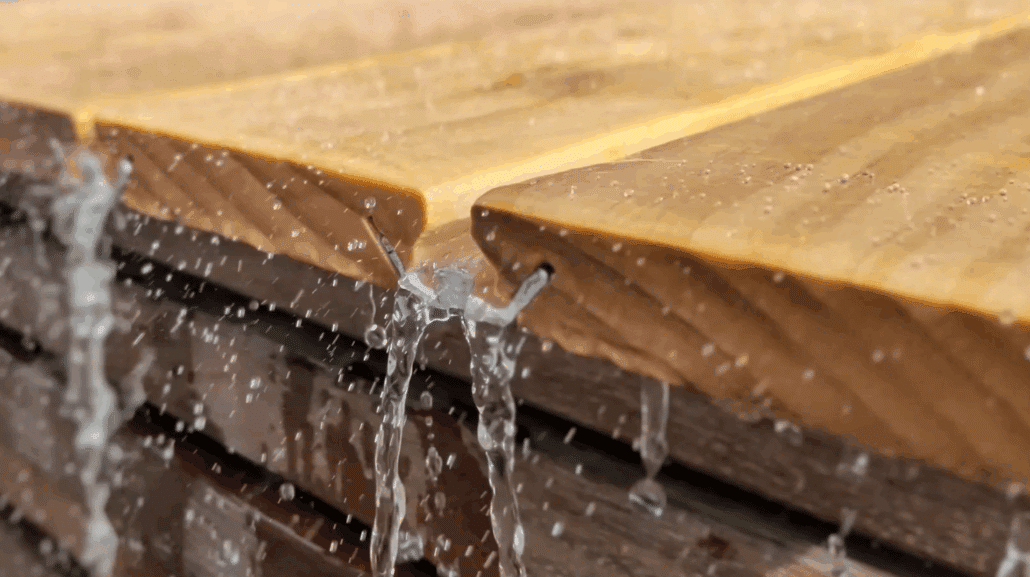

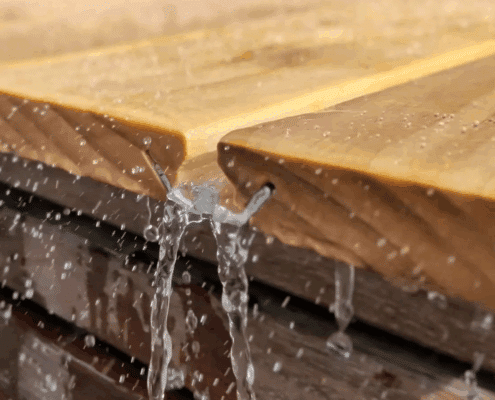

The Alphawing® profile is made up of two parts, namely the top profile and the W-shaped bottom profile. These are easy to click together after installation. The top profile covers the screws and protects the substructure and any lower decking or balconies. This way, the water is neatly transported without affecting the screws or substructure. The top profile is visible and is available in white and silver. The W-shaped bottom profile, the wings, are screwed to the substructure and the decking components are then pressed in. It is made of elastic PVC plastic. Due to the flexible wings, the profile absorbs the shrinking and swelling behavior of the decking components. This way, each plank can work separately from each other.
Choose the Alphawing® drainage system and create a durable and aesthetic wooden gallery or deck.
Thickness: Minimum 27 mm
Widths: 90, 140 and 190 mm
Attachment: Alphawing® clip
Note: Also available with smooth (Rose) and convex (Lily) top
Contact us today for more information and inquire about our FSC® certified or PEFC certified products.
In addition to the standard Alphawing profile, there's also the Alphawing® Slim version. The wood is planed differently, bringing the profiles closer together. This eliminates the need for a clip on top of the Wing.
Thickness: From 24 mm (Alphawing Slim Lotus from 27 mm)
Widths: 90, 140 and 190 mm
Profile: Alphawing® Slim
Note: Also available with walking deck (Lotus) and domed (Lily) top
Contact us today for more information and inquire about our FSC® certified or PEFC certified products.
Ask about our FSC® certified or PEFC certified products.
